4G Multi-Mode Wireless Indoor Router with 50 Mbps at uplink and 150 Mbps at downlink speed

Brand Name : SY

Model Number : GW103

Certification : FCC/CE/ROSH

Place of Origin : China

MOQ : 1

Price : US$23-US$27/PC

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3000 pieces per week

Delivery Time : 5-8 working days

Packaging Details : Standard color box or customized design color box packaging

Antenna : 2 x 5dBi External Antennas

Button : WPS/Reset Button

Data Rate : Up to 300Mbps

Frequency Band : 2.4GHz & 5GHz

Interface : 1 x 10/100Mbps WAN/LAN Port, 1 x USB 2.0 Port

LED Indicator : Power, WAN, WLAN, LAN, Signal Strength

Network Protocol : IEEE 802.11b/g/n/ac

Operating Temperature : 0℃~40℃ (32℉~104℉)

Power Supply : DC 12V/1A

Security Protocol : WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Wireless Standard : 802.11ac/n/g/b/a

Contact Now

4G Multi-Mode Wireless Indoor Router with 50 Mbps at uplink and 150 Mbps at downlink speed

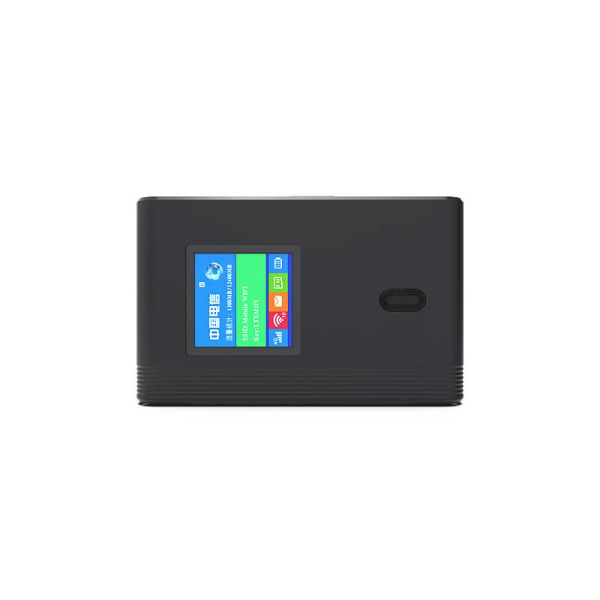

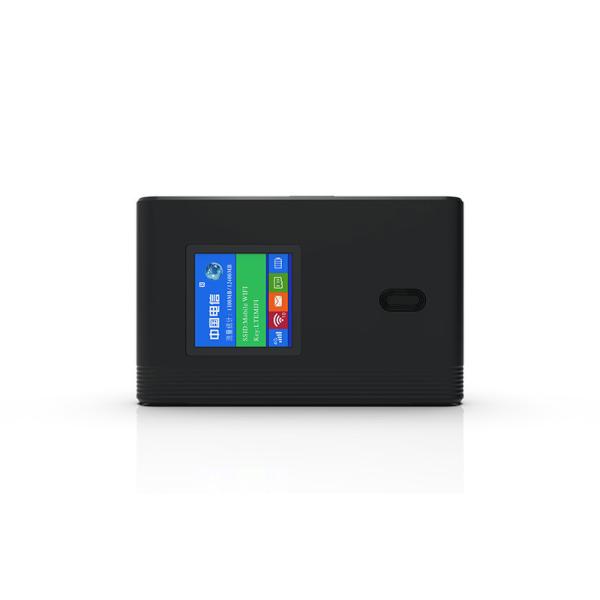

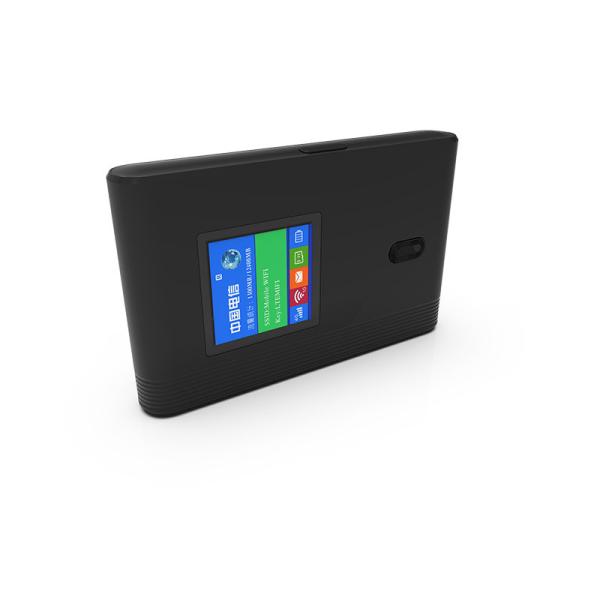

GW103 series is cost competitive multi-mode indoor MIFI, compliant with 3GPP Release 9, LTE 4G, 3G This multi-mode multi -band MIFI ensures operator to enjoy the cost-benefits over service and share of network.
• Multi-mode multi-band access of LTE 4G FDD, TDD bands
•Adaptive and Reliable Radio Access Modes: 4G, 3G
Multi-band LTE and UMTS
GW103 series can support multiple bands crossing 4G, 3G These spectrums are the most widely used and are prime bands for 4G, 3G deployments globally.
Under appropriate base station supports, GW103 series' speed of LTE FDD is theoretically 50 Mbps at uplink, and downlink speed is up to 150 Mbps. It results in a fast and robust uplink and downlink performance.
Supporting band:
Versions
FDD-LTE Band
TDD-LTE Band
WCDMA Band
GW103-AS
B1,B3,B5
B40 B1,B5
GW103-E
B1,B3,B7,B8,B20 B40 B1,B8
GW103-A
B2,B4,B5,B7 NA B2,B4,B5
GW103-J
B1,B3,B8,B18,B19 B26 B1,B8
GW103-M
B1,B3,B8 B38,B40,B41 B1,B8

Hardware Specifications:
CPU: ZX297520V3
Standard: 3GPP Release 9
UE Category: CAT.4
Wi-Fi: 2.4GHz (802.11 b/g/n compliant)
Display mode: 1.45 inch LCD (Optional screen)
Battery capacity: 2000mAh
Usage time: 6-8 hours battery life, 72 hours standby
LED Indicators: Power Wi-Fi/ Internet /Signa Strength
SIM: 3FF USIM (support 1.8V / 3.0V)
Power Button: Tact switch x1
Reset Button: Tact switch x1
Power Supply: Input: Universal range 100~240V AC; Output: 5V/ 1A DC (Micro USB length 30cm)
ID Specifiactions:
Dimension: 96.0*60.4*14.5mm
Weight: 99g


Package contains:

GW103 MIFI x 1
USB cable x 1
manual book x 1
